These micropositioners are intended for probing applications in the testing and analysis of silicon wafers, substrates, and dies in the semiconductor industry. It provides 3-axis motion with .500" movement on each axis. Motion is controlled by three screw adjustment knobs available in 40, 80 or 100 threads per inch. Precision high-quality 440 stainless steel ball bearings allow precise linear motion on all three axis. Gibs and Slides are made of 440 stainless steel. Slide bases are made of aluminum anodized black. All of the units are shipped at 80 TPI unless otherwise specified. Low profile translation stage.

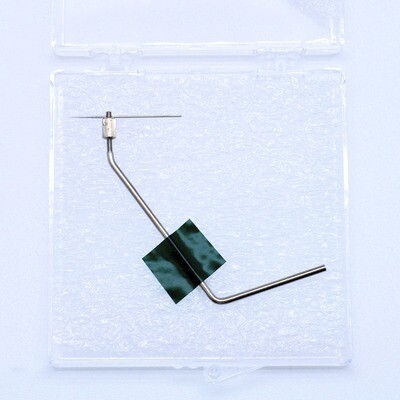

The XYZ 500 Micromanipulator with screw adjust is available only in a left hand and right hand model. A general purpose micropositioner, it is used for industrial, medical, biological, semiconductor, and general scientific applications. There are many front end options available to adapt to various testing applications. These translation stages are available in any combination of XYZ or just X and Y.

Specifications for XYZ 500 Micropositioner with Screw Adjust (Low Profile)

Height: 1.75"
Weight: Shipping weight less than 2 lb.
Base footprint: 1.50" X 2.00"
Travel: X, Y, Z axis = .500"
Resolution: Available with 40, 80, or 100 threads per inch.

Key Benefits

• Very fine position moves - less than one micron with motor option
• Bearings for precise movement
• Stable unit
• Upgradeable
